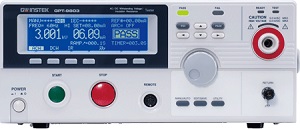

GW Instek GPT 9804

$631

Compare
Category:

Description

  • Measurement in accordance with all safety standards IEC, EN, UL as well as other requirements related to the testing of electronic components and products
  • Test Capacity AC 200VA
  • 5 kV AC/ 6 kV DC breakdown test, insulation resistance test 50V to 1000V DC (step 50V), ground resistance test with current from 3A to 30A AV (resolution 10mA)
  • Manual / Auto Test
  • LCD screen, 240×64 px Dot matrix
  • PWM switching amplifier to boost power efficiency and reliable testing
  • Quick Function Selection Button, Zero Crossing Turn-on Operation
  • Safety INTERLOCK function, RMS current measurement (1μA resolution)
  • Control of the Ramp Up Time
  • Setting the breakdown voltage with a step of 2V
  • Memory to store 100 blocks of test step settings. Each step can be named separately
  • Standard RS232C, USB and I/O interface, GPIB option
  • Warranty: 24 months
  • The kit contains:
    • GW Instek GPT 9804 instrument
    • Power Cord
    • Interlock Security Key
    • GHT114 & GTL115 Measuring Tapes
    • Instruction manual
