Description

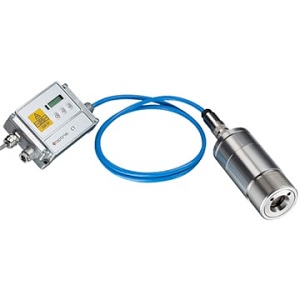

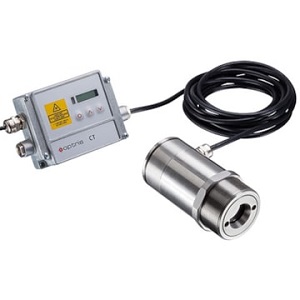

The Optris CTlaser F2 infrared temperature sensor measures CO2 flame gas from 392 to 2912°F for evaluating combustion processes, garbage incineration, and processes inside chemical reactors. It features dual laser technology to accurately mark the location at sizes as small as 0.06 inches from any distance. It can function in temperatures up to 185°F without additional cooling.
Selectable analog outputs and multiple digital interfaces offer high variability. The CTlaser F2 features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis, all field configurable with the USB programming kit (ACCTUSBK). Field selectable analog output options include 0/4-20mA, 0-5 and 0-10 V, type K or J thermocouples, and alarm. Optional USB, RS485, RS232 interface, 2 optically isolated relay outputs, CAN-Bus, Profibus DP, and Ethernet available with plug-in options.
The Optris Compact Connect temperature analysis software is available as a free download and is necessary to document and analyze temperature measurement data. It is compatible with all netbooks, notebooks, and PC systems via Windows XP, Windows Vista, Windows 7 and 8.
Features
Temperature ranges
392 to 2642°F (F2)
752 to 2912°F (F2H)
45:1 optical resolution
4.24µm spectral range
0.1 to 1.1 emissivity
Analog & J/K thermocouple output
160mA max current draw
8 to 36VDC power supply
IP65 NEMA-4 front mountable
At vacuum processes up to 10–3mbar
Instrumart logo
Looking for a fever screening solution? Here’s a list of approved items.
Instrumart logo
Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.
What’s in the Box
Mounting nut
ACCTLFB mounting bracket
3m standard head cable
Electronic box with LCD display
Programming keys
Manual
Reviews
There are no reviews yet.
