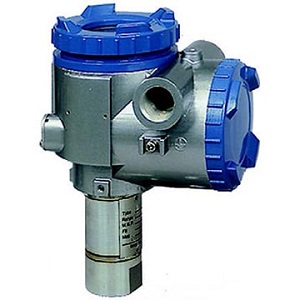

NOSHOK PT41 Series Pressure Transmitter

Description

The NOSHOK PT41 Series pressure transmitter is engineered for robust performance in high pressure applications. The PT41 transmitter addresses pressure ranges from 23,000 to 145,000 psig, offers premium standard accuracy of ±0.25% of span (BFSL) with ±0.125% optional, and features Elgiloy and 17-4PH Stainless Steel wetted parts.
The PT41 is CE compliant to suppress RFI, EMI, and ESD, and it is RoHS compliant.
Applications
Laboratory and test equipment
Power generation
Hydrostatic testing
High pressure cleaning
Waterjet cutting
Features
Gauge pressure ranges from 23,000 to 145,000 psig
Accuracy ±0.50% of span (BFSL) with ±0.25% option
±10% full scale for zero and span adjustment
32 to 176°F (0 to 80°C) media and compensated temperature ranges
Current and voltage outputs available
Elgiloy and 17-4PH Stainless Steel wetted parts
CE compliant to suppress RFI, EMI, and ESD
RoHS compliant
Reverse polarity, overvoltage and short circuit protection
Shock: 100g’s according to IEC 60068-2-27
Vibration: 15g’s according to IEC 60068-2-6
IP65: DIN EN 175301-803 Form C
IP67: 4-pin Bayonet, 6-pin Bayonet, 1/2″ NPT conduit, M12 x 1 (4-pin), Integral cable
