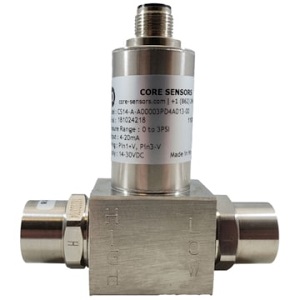

Core Sensors CS14 Differential Pressure Transducer

Description

The Core Sensors CS14 differential pressure transducer features a 316L SS oil-filled sensor element that provides excellent stability over a wide operating temperature range and offers corrosion resistance against various liquids and gases. The CS14’s compact design allows measurement in confined spaces. Configurable options include differential pressure ranges up to 300 psi, various voltage and 4-20mA loop-powered output signals and both male and female 1/4-inch NPT process connections.
Core Sensors CS14 Differential Pressure Transducer Applications
Filtration
Tank level monitoring
Cryogenic bulk tank level measurement
Features
Differential pressures up to 300 psi
Bi-directional ranges available
500 psi max line pressure
Accuracy:
≤ ±0.25% BFSL
≤ ±0.5% BFSL (2 psi and below)
≤ ±0.25% of full scale stability
4 million pressure cycles
2x or 500 psi (whichever is less) overpressure
3x rated differential pressure burst pressure
-40 to 221°F (-40 to 105°C) operating temperature
32 to 131°F (0 to 55°C) compensated temperature
TC Zero:
≤ ±1% of full scale
≤ ±2% of full scale (2 psi and below)
TC Span:
≤ ±1% of full scale
≤ ±2% of full scale (2 PSI and below)
EMI/RFI protection
IP65 rating
